Solar-Powered Water Purifier/Portable Solar RO System/Off-Grid Water Treatment Unit
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | CHONGYANG |
| Certification: | ISO ,CE |
| Numéro de modèle: | CY-SRO-500L/H |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|---|
| Prix: | USD 4999-10000 KGS |
| Détails d'emballage: | Selon la norme d'exportation |
| Délai de livraison: | Avec 30-40 jours |
| Conditions de paiement: | LC, T/T |
| Capacité d'approvisionnement: | 10 séries/mois |
|
Détail Infomation |
|||
| Nom du produit: | Purificateur d'eau à énergie solaire | Capacité: | Personnalisé |
|---|---|---|---|
| Processus: | Traitement préparatoire, dispositif de RO | Exigence: | Personnalisé |
| Matériel: | Acier inoxydable, UPVC | Source d'eau: | Eau du robinet, au fond, |
| Réservoir d'eau: | Réservoir d'eau non traitée, réservoir moyen, réservoir d'eau pur | Logement filtrant: | FRP, acier inoxydable |
| Pompe: | Grundfos, CNP | ||
Description de produit

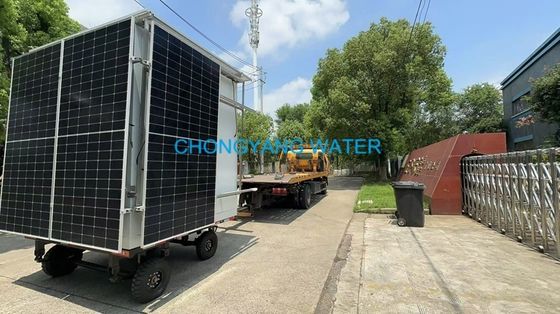

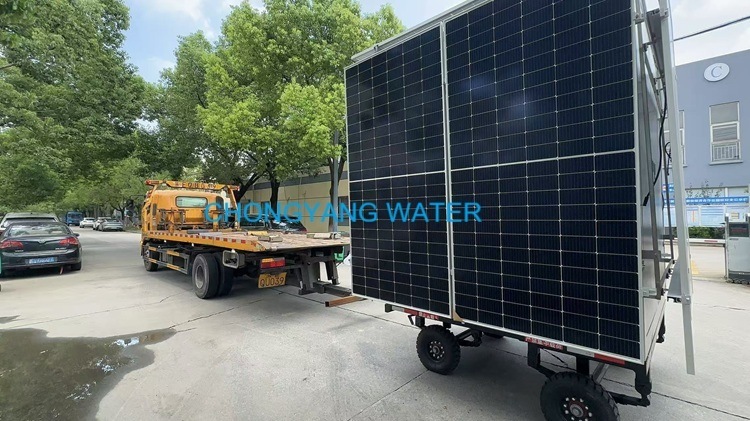

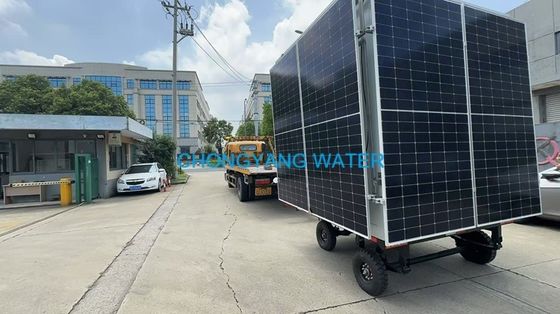

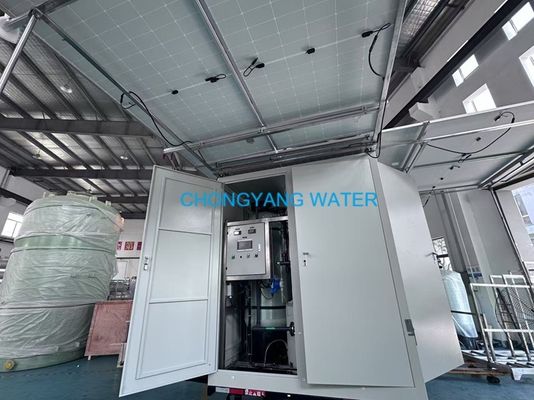

Description: Containerized Solar PV RO System
1. What it is:
A Containerized Solar PV RO System is a complete, self-contained water treatment plant built inside a standard shipping container. It uses solar energy to turn seawater or brackish (salty) water into clean, safe drinking water.
2. What it does (Its Purpose):
Its main job is to provide a large, reliable supply of clean water for communities, military bases, resorts, or industrial sites that are off the electrical grid or in remote coastal areas. It is a "plug-and-play" solution that can be transported anywhere in the world.
3. How it works (The Process):
Basis Parameter
-
Solar Power Generation: Solar panels are installed on the container's roof or on the ground nearby. They capture sunlight and convert it into electricity.
-
Power Management & Storage: A solar charge controller manages the power. The electricity is stored in a large bank of batteries inside the container, ensuring the system can run 24/7, day and night. An inverter converts the battery power to run the system's pumps and controls.
-
Water Pre-Treatment: Raw water from the sea or a well is pumped into the container. It first passes through pre-filters (a sediment filter and carbon filter) to remove sand, dirt, and other large particles.
-
Reverse Osmosis (RO): A high-pressure feed pump pushes the pre-treated water through the RO membranes. These membranes have extremely tiny pores that block salt, viruses, bacteria, and other harmful contaminants, allowing only clean water molecules to pass through.
-
Post-Treatment & Storage: The purified water is collected. A UV (Ultraviolet) sterilizer provides a final disinfection step to ensure all germs are destroyed. The clean water is then sent to a large external storage tank, ready for use.
| Parameter | Model 1000L | Model 1500L | Model 2000L | Model 3000L |
| Clean Water Output (per hour) | 1,000 Liters | 1,500 Liters | 2,000 Liters | 3,000 Liters |
| Solar Power (Solar Panels) | 5 - 6 kW | 7 - 9 kW | 10 - 12 kW | 14 - 17 kW |
| Battery Storage | 20 kWh | 30 kWh | 40 kWh | 60 kWh |
| Container Size | 20-foot | 20-foot | 20-foot | 40-foot |
| RO Membrane Type | 8-inch | 8-inch | 8-inch | 8-inch (multiple) |
| Water Recovery Rate | ~40-50% | ~40-50% | ~40-50% | ~40-50% |
| Pretreatment | Multi-media Filter, Carbon Filter, Antiscalant Dosing | Multi-media Filter, Carbon Filter, Antiscalant Dosing | Multi-media Filter, Carbon Filter, Antiscalant Dosing | Multi-media Filter, Carbon Filter, Antiscalant Dosing |
| Post-Treatment | UV Sterilizer, Remineralization (Optional) | UV Sterilizer, Remineralization (Optional) | UV Sterilizer, Remineralization (Optional) | UV Sterilizer, Remineralization (Optional) |
| Key Advantage | Compact, ideal for small communities | Balanced output and footprint | High output for larger demands | Maximum output for small towns or large facilities |
